Product name |
Anti-static ESD acrylic sheets |
|
Warranty |
More than 10-year |
|
Thickness |
2-20MM |
|
Size |
1220*2440mm/1000*2000mm |
|
Service |
Online technical support. etc |
Products

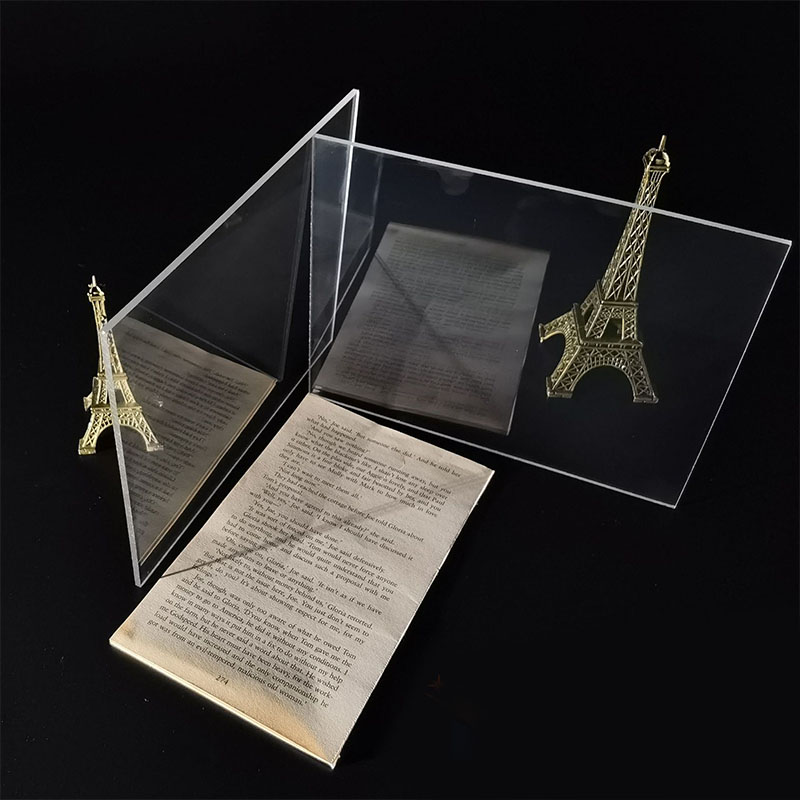

Long term anti-static organic glass acrylic board for electronic display
With anti-static acrylic sheeting, you can stop worrying about electrostatic discharge causing latent damage and rejects to electronic items. Also known as electrostatic dissipative (ESD) acrylic, the anti-static acrylic sheeting is coated with a transparent material that prevents the formation of static electricity on the surface.
According to most feedback from our clients and quality testing in various conditions, the surface resistance is 10^6~10^8Ω,which has excellent anti-static and dust-proof performance.
It is mainly used in various electronic industry fields represented by semiconductor and liquid crystal displays.
| No | Item | Data |
| 1 | Product name | Anti-static Organic PVC Sheet |
| 2 | Application | Industry |
| 3 | Density | 1.2g/cm3 |
| 4 | Advantage | Electrical Dissipative |
| 5 | Certificate | ISO9001 |
| 6 | Samples | Provided for free |
| 7 | Package | PE Film(or Kraft Paper)+wood PalletEngine displacement |
| 8 | Process Service | AR Coating/Hard Coating/Wear Resistent |
Physical Properties
| Properties | Unit | Value |
| Density (clear acrylic) | g/cm^3 | 1.19 |
| Tensile Strength | Mpa | >70 |
| Charpy impact strength (unnotched) | KJ/m^2 | >13 |
| Tension Modulus of Elasticity | Mpa | >3000 |
| Tensile Strain at break | % | >4 |
| Flexural strength | Mpa | 100 to 115 |
| Charpy impact strength (unnotched) | kj/m^2 | >17 |
| Vicat softening temperature | °C | >105 |
| Dimensional change on heating (shrinkage) | % | <2.5 |
| Total luminous transmittance | % | >90 |
| Rockwell hardness | 100 to 115 | |
| Linear expansion coefficient | K^ -1 | 7×10^-5 |
| Temperature of deflection under load | °C | 95 to 100 |
| Light transmittance | % | >90 |
1.Superior impact resistance and high temperature performance outstanding.
2. The surface resistance value of 10^6 ~ 10^8Ω , with excellent anti-static function.
3. The high surface hardness and superior scratch resistance.
4.Look beautiful, very smooth, light transmission rate of more than 80%.
5. The flame retardant rating of UL-94: V-2, excellent fire performance.
6. Since it resists charge build-up it does not attract contaminants, so it can also help prevent contamination-related rejects in ultra-clean manufacturing operations. It can help prevent both immediate and latent ESD caused defects.
7. Permanence in static dissipation performance.
8. Good chemical resistance.
Anti-static ESD acrylic is ideal for any applications involving electricity or electrically conductive surfaces including static control shields, glove boxes, conveyor line covers, electronic equipment and more. For more antistatic plastic sheets, check out AC Plastics’ antistatic polycarbonate sheet.
 |
 |
 |
 |
1) Electronics Manufacturing: In the electronics industry, where sensitive electronic components are handled, an anti-static plastic board can be used as work surfaces, assembly stations, or trays

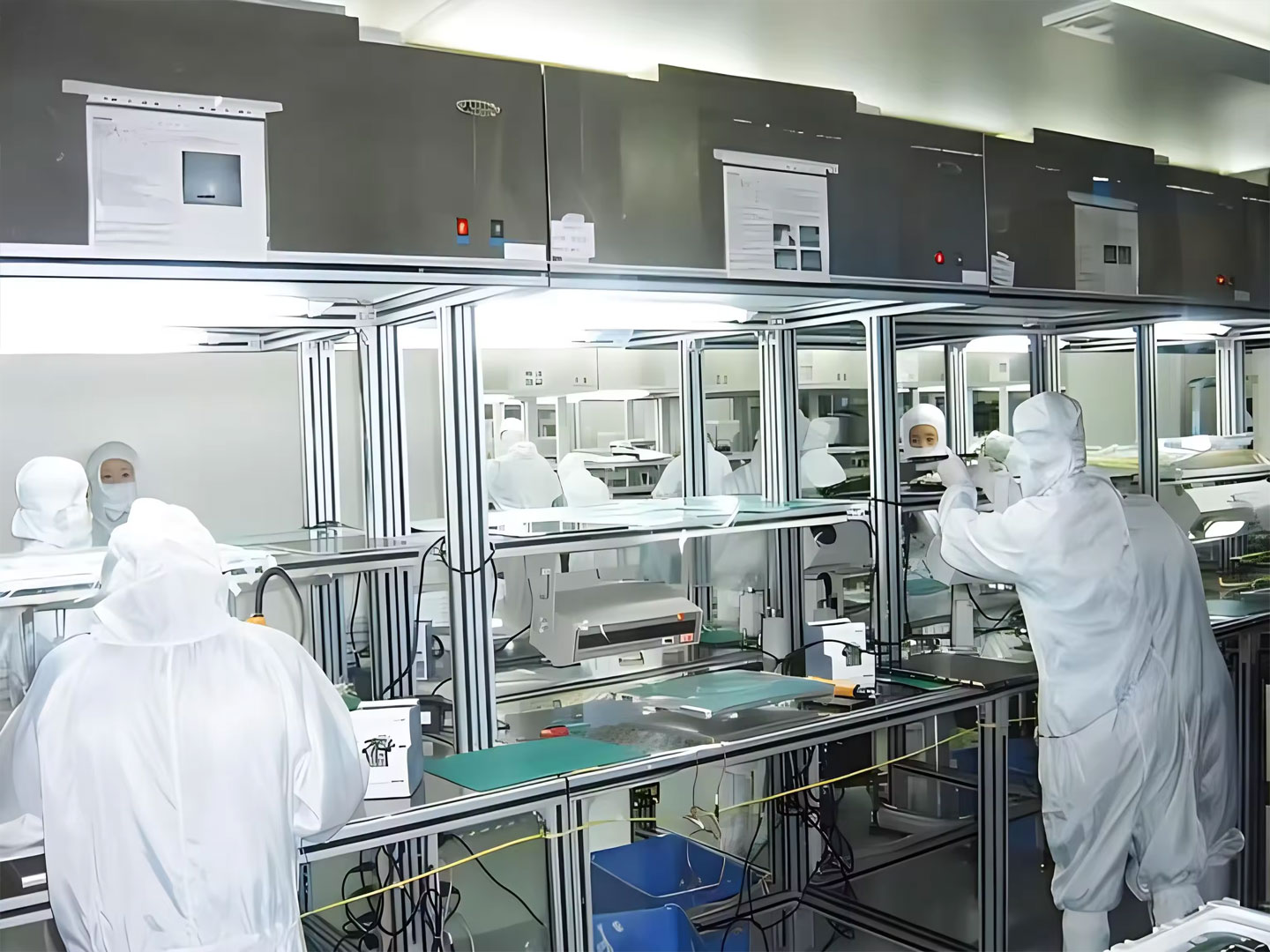

2) Cleanrooms and Laboratories: Cleanrooms and laboratories require strict control of static electricity to safeguard sensitive processes and materials.
3) Packaging and Storage: In industries where static electricity can damage or negatively impact products, such as electronics, automotive parts, or sensitive materials
4) Assembly and Testing: Anti-static plastic boards are commonly utilized in assembly and testing operations where static-sensitive components are involved.
5) Transportation and Handling: During the transportation and handling of sensitive materials or products, an anti-static plastic board can be used as a protective layer or lining in containers, pallets, or trays.
Certifications
MCLpanel have been focused on the research and development in production and overall solutions of optical functional protective plastic plates ,such as anti-static ESD / anti-glare /anti-fog/chemical resistant / abrasion hard-coating/ weatherable hard-coating enhancement on acrylic / PC /PVC sheets and so on. They are widely used in electronics, electrical, communications manufacturing, liquid crystal display, electronic equipment, semiconductors, precision instruments, medicine, optical manufacturing, vehicle manufacturing, new energy and building decoration and other fields at home and abroad.
Production Process
1.Q: Is the anti -static performance of anti -static acrylic board lasting?
A: Under normal use and maintenance conditions, its anti -static performance is usually relatively long -lasting, but it will be affected by some factors such as wear and environment.
2.Q: Can the anti -static acrylic board completely eliminate static electricity?
A: Although it has anti -static function, it cannot guarantee that all static electricity can be completely eliminated, but it can effectively reduce the generation and accumulation of static electricity.
3.Q: What areas can the anti -static acrylic board be used?
A: It is commonly used in industries and fields of electrostatic sensitivity to electrostatic, such as electronics, semiconductor, medical equipment, and precision instruments.
4.Q: How to clean and maintain the anti -static acrylic board?
A: You can use a soft and clean wet cloth gently to avoid using sharp or rough cleaning tools to avoid damaging the surface of the surface.
5.Q: What is the difference between anti -static acrylic board and ordinary acrylic board?
A: The ordinary acrylic board does not have the characteristics of the anti -static electricity. It is easy to accumulate static electricity and generate static discharge. The anti -static acrylic board is specially treated, adding antistatic agents or coating to the material, which can effectively dissipate static electricity and prevent static interference.
